Single Mode G.652.D ADSS (All Dielectric Self-Supporting) Double Jacket Aerial Optical Fiber Cables
ADSS (All Dielectric Self-Supporting) aerial optical fiber cables designed for high-performance aerial environments including power transmission and distribution networks. All-dielectric construction avoids the need for cable shielding and grounding, reducing installation costs. These cables are manufactured to international standards. :content Reference
Applications
- Aerial installation
- Lightning protection
- Junction communication systems
- Subscriber network systems
Cable Construction (summary)
-
- Loose tube filled with gel, stranded around central strength member
- Dry core with core wrap and water blocking materials (yarns/tapes)
- Polyethylene inner sheath + peripheral aramid yarn strength member
- Polyethylene outer jacket (double jacket construction)

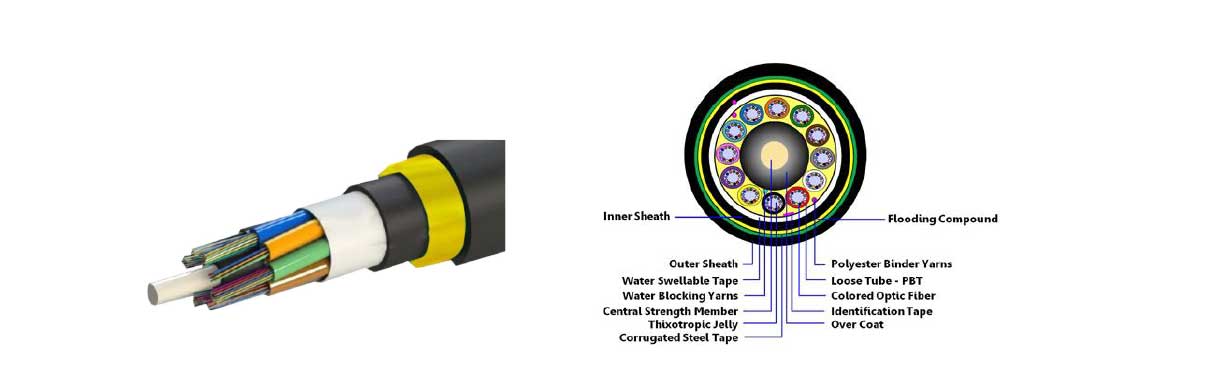

CROSS SECTIONAL DRAWING
Technical Characteristics:
Technical Characteristics
- Extrusion technology gives fibers good flexibility and bending endurance.
- Controlled fiber excess length improves mechanical & environmental performance.
- Multiple water-blocking materials provide dual water-blocking function.
- Good crush resistance and environmental durability.
Features & Benefits
- Supports single-mode and multimode fibers.
- Round cable profile minimizes wind loading and ice/tensile loading (reduces sag and tensile force).
- All-dielectric design is immune to electromagnetic interference (suitable near power lines).
Construction & Optical Parameters
| Parameter | Specification |
|---|---|
| Fiber Type | ITU-T G.652D (Single Mode) |
| Fiber Count | 02 to 144 Fibers |
| Loose Tube Filling Material | Thixotropic Terephthalate (PBT) |
| Central Strength Member | Fiber Reinforced Plastic (FRP) |
| Filler Material | Polyethylene |
| Core Moisture Protection | Dry block design; water blocking yarns/tapes |
| Armouring / Peripheral Strength | Aramid yarn |
| Outer Sheath Material | Medium/High Density Polyethylene (HDPE / MDPE) |
| Printing on Outer Sheath | Engraved hot foil ink or inkjet printing |
| Drum Length | 2000 or 4000 meters ±5% |
| Single Mode Fiber (example) | CORNING SMF-28e+ (G.652D) |
| Fiber Colour Coding | As per TIA/EIA-598A & C |
| Mode Field Diameter (µm) | 8.6 – 9.5 ± 0.7 |
| Cladding Diameter (µm) | 125 ± 1 |
| Core-Clad Concentricity Error | ≤ 0.8 µm |
| Cladding Non-Circularity | ≤ 2% |
| Cable Cut-off Wavelength (nm) | ≤ 1260 nm |
| Chromatic Dispersion | ≤ 3.5 ps/nm·km @ 1310 nm; ≤ 18 ps/nm·km @ 1550 nm |
| Cabled Attenuation | ≤ 0.35 dB/km @ 1310 nm (avg); ≤ 0.21 dB/km @ 1550 nm (avg) |
| Polarized Mode Dispersion (PMD) | ≤ 0.2 ps/√km |
Mechanical Characteristics
| Characteristic | Specification |
|---|---|
| Tensile Strength (N) (Max) | 5000 N |
| Minimum Bending Radius (no load) | 10 × outer diameter |
| Bending Radius (with load) | 20 × outer diameter |
| Diameter of cable (mm) | — (refer to ordering sheet / drawing) |
| Crush Strength (N) (Max) | 2500 N |
| Temperature Range | -20 °C to +70 °C |
Note: All Mechanical & Environmental Test Shall be Conducted as per IEC-60794
Standard.
