SINGLE MODE G.652.D DUCT TYPE OPTICAL FIBER CABLE
Duct non-metallic dry-core optical fiber cables are built around a proven loose-tube design that protects fibers from environmental and mechanical forces.
These cables are lightweight, have a small diameter for duct and conduit installation and are manufactured to international standards.
Applications
- Inter-office trunking
- Data & video transmission
- Control & alarm systems (SCADA / telemetry)
- Suitable for laying in ducts and concrete
Cable Construction (summary)
- Loose tube filled with gel
- Stranded around a central strength member
- Water-blocking materials (yarns / tapes)
- Peripheral strength members (glass yarn if required)
- Polyethylene outer jacket (HDPE/MDPE)

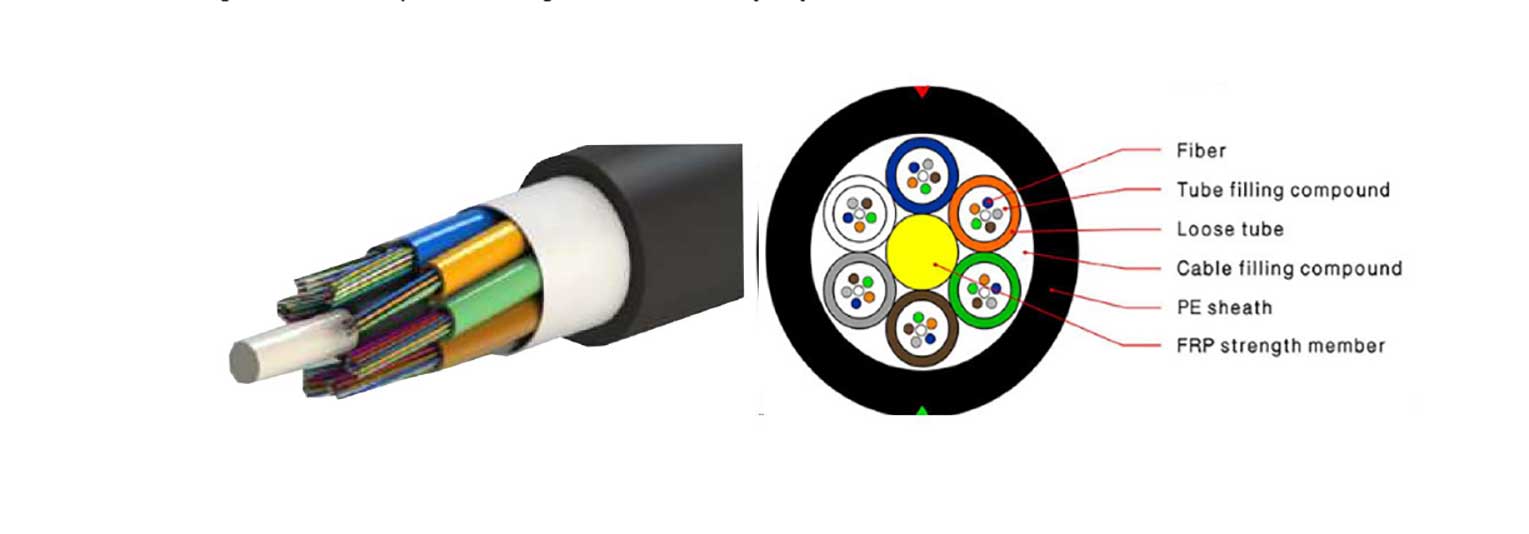

CROSS SECTIONAL DRAWING
Technical Characteristics:
Technical Characteristics
- Unique extrusion technology provides fibers in the tube with good flexibility and bending endurance.
- Controlled fiber excess length method improves mechanical & environmental performance.
- Multiple water-blocking filling provides a dual water-blocking function.
- Good crush resistance for duct installations.
Features & Benefits
- Suitable for conduit and pipeline long-haul applications
- Supports all grades of single-mode and multimode fibers
- Can be laid near power cables
- Ideal for telemetry & SCADA links for oil, gas and electricity networks
Construction Parameters
| Parameter | Specification |
|---|---|
| Fiber Type | ITU-T G.652.D |
| Fiber Count | 02 to 144 Fibers |
| Loose Tube Material | PBT |
| Loose Tube Filling Material | Thixotropic Jelly Terephthalate (PBT) |
| Central Strength Member | Fiber Reinforced Plastic (FRP) |
| Peripheral Strength Member (if required) | Glass Yarn |
| Filler Material | Polyethylene |
| Core Moisture Protection Method | Dry block design; water-blocking yarns / tapes |
| Outer Sheath Material | Medium / High Density Polyethylene (HDPE/MDPE) |
| Printing on Outer Sheath | Engraved hot foil ink or inkjet printing |
| Drum Length | 2000 m or 4000 m ± 5% |
Optical Characteristics
| Characteristic | Specification |
|---|---|
| Single Mode Fiber | CORNING SMF-28e+ G.652D |
| Fiber Colour Coding | As per TIA/EIA-598A & C |
| Mode Field Diameter (µm) | 8.6 to 9.5 ± 0.7 |
| Cladding Diameter (µm) | 125 ± 1 |
| Core-Clad Concentricity Error (µm) | <= 0.8 µm |
| Cladding Non-Circularity (%) | <= 2% |
| Cable Cut-off Wavelength (nm) | <= 1260 nm |
| Chromatic Dispersion (ps / nm·km) | <= 3.5 @ 1310 nm; <= 18 @ 1550 nm |
| Cabled Attenuation @ 1310 nm (dB/km) | < 0.35 (average) |
| Cabled Attenuation @ 1550 nm (dB/km) | < 0.21 (average) |
| Polarized Mode Dispersion (PMD) ps/√km | < 0.2 |
Mechanical Characteristics
| Test / Characteristic | Value |
|---|---|
| Tensile Strength (N) (Max) | 3000 |
| Minimum Bending Radius | 10 × outer diameter (without load) |
| Diameter of cable (mm) | 20 × outer with load |
| Crush Strength (N) (Max) | 2500 |
| Temperature Range | -20 °C to +70 °C |
Note: All Mechanical & Environmental Test Shall be Conducted as per IEC-60794
Standard.
