SINGLE MODE G.652.D AERIAL FIG-8 OPTICAL FIBER CABLE
Aerial Figure-8 Optical Fiber Cables. These are Self-Supporting cables designed for aerial installation. The cable design provides easy and economical one-step installation and stable performance over a wide temperature range. The whole tensile load is borne by steel messenger wire. These cables are manufactured according to international standard.
Applications: Aerial Installation – High Mechanical Strength – Data, Voice & Video Transmission

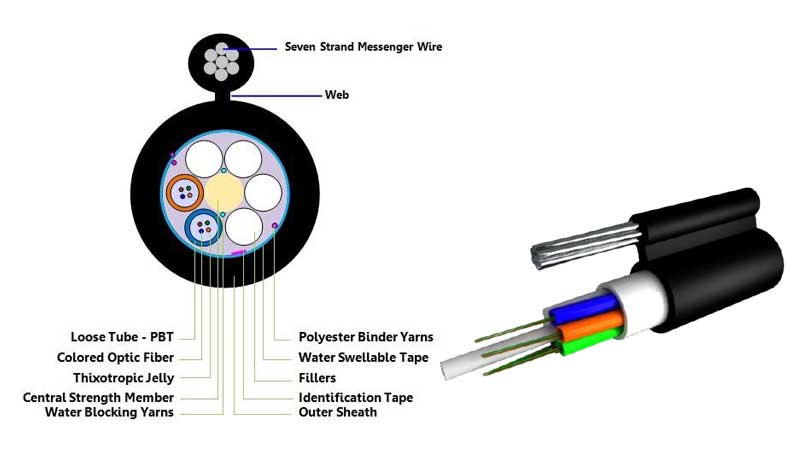

Cable Constructions: Loose Tube filled with Gel – Stranded around Central Strength Member – Water Blocking Material – Dry Core – Messenger Wire embedded Polyethylene Outer Jacket
Technical Characteristics:
- Theuniqueextrudingtechnology provides the fibers in the tube with good flexibility andbending endurance
- Theuniquefiberexcesslengthcontrolmethodprovidesthecablewithexcellent mechanical and environmental properties
- Multiplewaterblockingmaterialfillingprovidesdualwaterblockingfunction
Features & Benefits:
- Small Diameter
- Light Weight
- Compatible for any telecommunication grade optical fiber
Construction Parameters
| Parameter | Value |
|---|---|
| Fiber Type | ITU-T G.652D |
| Fiber Count | 12F, 24F, 36F, 48F, 72F |
| Number of Fiber per Loose Tube | 12 |
| No. of Loose Tubes | 1, 2, 3, 4, 6 (depending on fiber count) |
| Loose Tube Filling Material | Thixotropic Terephthalate (PBT) |
| Central Strength Member | Fiber Reinforced Plastic (FRP) |
| No. of Fillers | 5, 4, 3, 2, 0 (varies by design) |
| Filler Material | Polyethylene |
| Core Moisture Protection | Dry block design; water blocking yarns/tapes |
| Messenger Wire | Galvanized steel wires |
| Outer Sheath Material | MDPE / HDPE |
| Printing on Outer Sheath | Engraved hot foil ink or inkjet |
| Drum Length | 2000 m or 4000 m ± 5% |
Optical Characteristics
| Characteristic | Specification |
|---|---|
| Single Mode Fiber | CORNING SMF-28e+ G.652D |
| Fiber Colour Coding | As per TIA/EIA-598A & C |
| Mode Field Diameter (µm) | 8.6 to 9.5 ± 0.7 |
| Cladding Diameter (µm) | 125 ± 1 |
| Core-Clad Concentricity Error (µm) | ≤ 0.8 |
| Cladding Non-Circularity (%) | ≤ 2% |
| Cable Cut-off Wavelength (nm) | ≤ 1260 |
| Chromatic Dispersion (ps/nm·km) | ≤ 3.5 @ 1310 nm; ≤ 18 @ 1550 nm |
| Cabled Attenuation @ 1310 nm (dB/km) | ≤ 0.35 (average) |
| Cabled Attenuation @ 1550 nm (dB/km) | ≤ 0.21 (average) |
| Polarized Mode Dispersion (PMD) (ps/√km) | ≤ 0.2 |
Mechanical Characteristics
| Characteristic | Specification |
|---|---|
| Tensile Strength (N) (Max) | 3000 |
| Minimum Bending Radius | 10 × outer diameter (without load) |
| Bending Radius (with load) | 20 × outer diameter |
| Crush Strength (N) (Max) | 2500 |
| Temperature Range | -20 °C to +70 °C |
SM G.652.D AERIAL FIG-8 FIBER OPTIC CABLE PRICE IN PAKISTAN:
You can get the price of fiber optics cable in Pakistan by emailing us at info@litech.com.pk, and we’ll respond with a quote within 24 hours. We offer a wide range of fiber optic cable prices in Pakistan, as with all of our products. We make every effort to provide you with the most competitive price for your fiber optic cable requirements. We also understand that you want your fiber optic cable in Pakistan delivered as soon as possible, so we make every effort to do so. We can provide standard-grade or high-grade fiber optic cable. We can assist you if you are looking for fiber optic cable in Pakistan. We have a wide range of prices available.
